Change SCCM Server log file size using Configuration Manager Service Manager

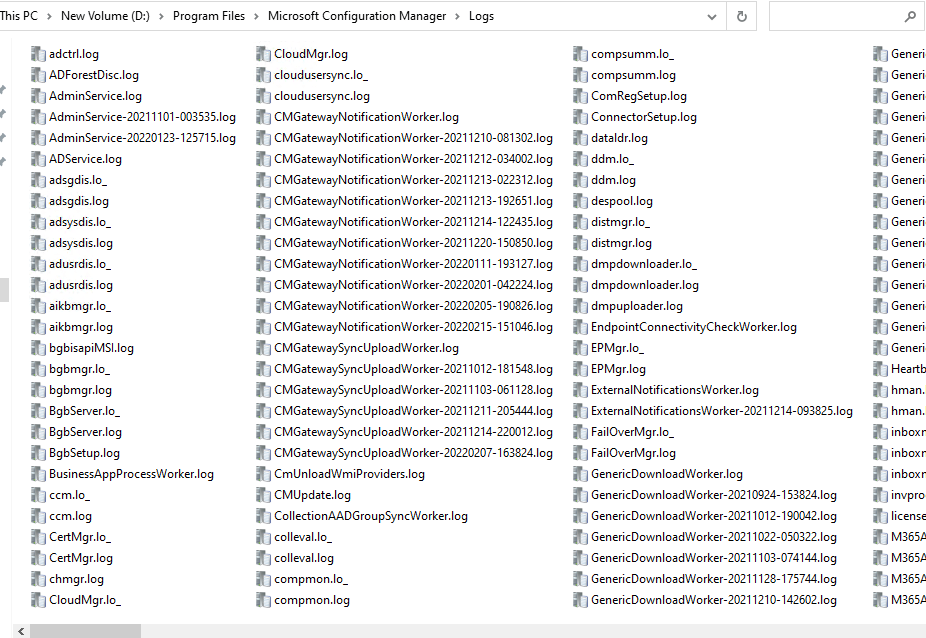

In this post I will be showing how to change SCCM Server log file size using Configuration Manager Service Manager. Configuration Manager server side log files for Site servers are located under installation directory of Microsoft Configuration Manager\logs folders. If installation was done in d drive, then the location would be d:\Program Files\Microsoft Configuration Manager\Logs.

Configuration Manager creates log files for each specific component, let say mpcontrol.log which shows the health of the Management point has a component name called “SMS_MP_CONTROL_MANAGER” and each log file is assigned a specific log file size.

In case, more data is captured, it will become historical log file so as to start capturing the latest logs. Mpcontrol.log size if exceeds 2 MB, it will now have 2 files:

• Mpcontrol.lo_ (historical log file – old one)
• Mpcontrol.log (latest one)

Requirement for increasing the log file size

But what if you were not able to capture all the details as log file of 2 MB looks pretty small and if you wanted to get the data 3-4 days old, and found it has been overwritten ?

This is where increasing the log file size will be useful to capture more data. Rather than specifying 2 MB, we can make it 10 MB or anything what we like.

Majority of Configuration Manager components / log files are having 2 MB log file while few of them are having different size. We can change the value for each specific component based upon our requirement.

How to increase SCCM Server log files size

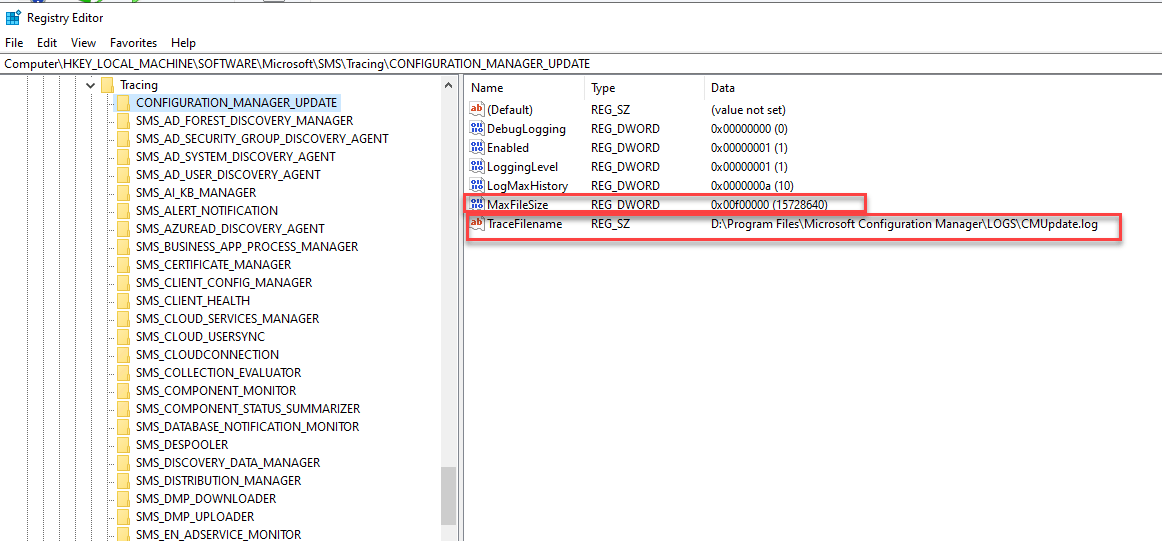

SCCM Site Server log files size is saved under the registry key Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Tracing, where we can see list of all Site Server components.

For CONFIGURATION_MANAGER_UPDATE component, we can see maximum file size and log file name with location:

MaxFileSize is 15728640 (15 MB)

TraceFilename: d:\Program Files\Microsoft Configuration Manager\LOGS\CMUpdate.log

We can change the value here.

However, I would prefer much more professional and efficient way to change this using Configuration Manager console.

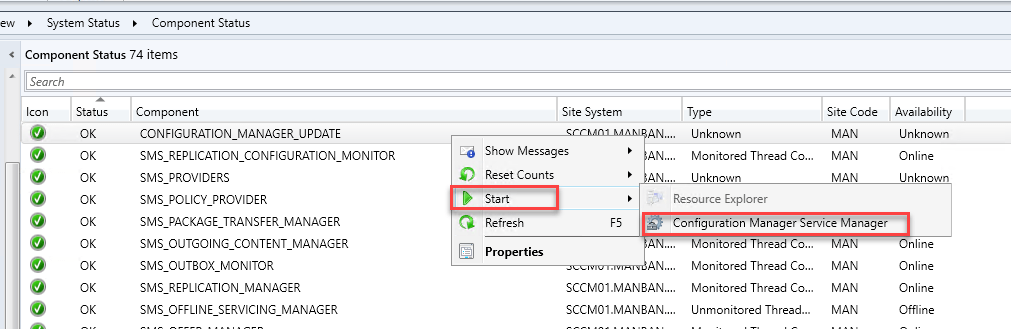

Launch Configuration console and navigate to \Monitoring\Overview\System Status\Component Status to display list of all Component Status.

Right click any component, start and click Configuration Manager Service Manager.

Once Configuration Manager Service Manager is launched, you can see list of Configuration Manager Site Servers, expand it to see Components and Servers.

Under Components, select any specific component, for example SMS_EXECUTIVE, on right pane select the component and right click to select Logging.

Which comes up with “Logging Enabled” along with:

• Long filename: D:\Program Files\Microsoft Configuration Manager\Logs\smsexec.log
• Log size (MB): 2

Make appropriate changes for log size and that’s it.

List of Component names along with log file and size

Following are the list of all Configuration Manager components, along with log file name and default size:

CONFIGURATION_MANAGER_UPDATE	CMUpdate.log	15 MB
SMS_AD_FOREST_DISCOVERY_MANAGER	ADForestDisc.log	2 MB
SMS_AD_SECURITY_GROUP_DISCOVERY_AGENT	adsgdis.log	2 MB
SMS_AD_SYSTEM_DISCOVERY_AGENT	adsysdis.log	2 MB
SMS_AD_USER_DISCOVERY_AGENT	adusrdis.log	2 MB
SMS_AI_KB_MANAGER	aikbmgr.log	2 MB
SMS_ALERT_NOTIFICATION	NotiCtrl.log	2 MB
SMS_AZUREAD_DISCOVERY_AGENT	SMS_AZUREAD_DISCOVERY_AGENT.log	2 MB
SMS_BUSINESS_APP_PROCESS_MANAGER	SMS_BUSINESS_APP_PROCESS_MANAGER.log	2 MB
SMS_CERTIFICATE_MANAGER	CertMgr.log	2 MB
SMS_CLIENT_CONFIG_MANAGER	ccm.log	2 MB
SMS_CLIENT_HEALTH	chmgr.log	2 MB
SMS_CLOUD_SERVICES_MANAGER	CloudMgr.log	2 MB
SMS_CLOUD_USERSYNC	cloudusersync.log	2 MB
SMS_CLOUDCONNECTION	SMS_CLOUDCONNECTION.log	2 MB
SMS_COLLECTION_EVALUAT0R	colleval.log	2 MB
SMS_COMPONENT_MONITOR	compmon.log	2 MB
SMS_COMPONENT_STATUS_SUMMARIZER	compsumm.log	2 MB
SMS_DATABASE_NOTIFICATION_MONITOR	smsdbmon.log	2 MB
SMS_DESPOOLER	despool.log	2 MB
SMS_DISCOVERY_DATA_MANAGER	ddm.log	2 MB
SMS_DISTRIBUTION_MANAGER	distmgr.log	2 MB
SMS_DMP_DOWNLOADER	dmpdownloader.log	2 MB
SMS_DMP_UPLOADER	dmpuploader.log	2 MB
SMS_EN_ADSERVICE_MONITOR	adctrl.log	2 MB
SMS_ENDPOINT_PROTECTION_MANAGER	EPMgr.log	2 MB
SMS_EXECUT1VE	smsexec.log	2 MB
SMS_FAILOVER_MANAGER	FailOverMgr.log	2 MB
SMS_HIERARCHY_MANAGER	hman.log	2 MB
SMS_INBOX_MANAGER	inboxmgr.log	2 MB
SMS_INBOX_MONITOR	inboxmon.log	2 MB
SMS_INVENTORY_DATA_LOADER	dataldr.log	2 MB
SMS_INVENTORY_PROCESSOR	invproc.log	2 MB
SMS_ISVUPDATES_SYNCAGENT	SMS_ISVUPDATES_SYNCAGENT.log	2 MB
SMS_LAN_SENDER	sender.log	2 MB
SMS_LICENSE_MANAGER	licensemgr.log	2 MB
SMS_MESSAGE_PROCESSING_ENGINE	SMS_MESSAGE_PROCESSING_ENGINE.log	2 MB
SMS_MIGRATION_MANAGER	migmctrl.log	2 MB
SMS_MP_CONTROL_MANAGER	mpcontrol.log	2 MB
SMS_MP_FILE_DISPATCH_MANAGER	mpfdm.log	2 MB
SMS_NETWORK_DISCOVERY	netdisc.log	2 MB
SMS_NOTIFICATION_MANAGER	bgbmgr.log	2 MB
SMS_NOTIFICATION_SERVER	BgbServer.log	2 MB
SMS_OBJECT_REPLICATION_MANAGER	objreplmgr.log	2 MB
SMS_OFFER_MANAGER	offermgr.log	2 MB
SMS_OFFER_STATUS_SUMMARIZER	offersum.log	2 MB
SMS_OFFLINE_SERVICING_MANAGER	OfflineServicingMgr.log	2 MB
SMS_OUTBOX_MONITOR	outboxmon.log	2 MB
SMS_OUTGOING_CONTENT_MANAGER	outgoingcontentmanager.log	2 MB
SMS_PACKAGE_TRANSFER_MANAGER	PkgXferMgr.log	2 MB
SMS_POLICY_PROVIDER	policypv.log	2 MB
SMS_PROVIDERS	certificate.log	2 MB
SMS_REPLICATION_C0NFIGURAT10N_M0NIT0R	rcmctrl.log	2 MB
SMS_REPLICATION_MANAGER	replmgr.log	2 MB
SMS_REST_PROVIDER	SMS_REST_PROVIDER.log	2 MB
SMS_RULE_ENGINE	ruleengine.log	2 MB
SMS_SCHEDULER	schedule.log	2 MB
SMS_SERVICE_CONNECTOR	SMS_SERVICE_CONNECTOR.log	2 MB
SMS_SITE_BACKUP	smsbkup.log	2 MB
SMS_SITE_COMPONENT_MANAGER	sitecomp.log	2 MB
SMS_SITE_CONTROL_MANAGER	sitectrl.log	2 MB
SMS_SITE_SQL_BACKUP	smssqlbkup.log	2 MB
SMS_SITE_SYSTEM_STATUS_SUMMARIZER	sitestat.log	2 MB
SMS_SITE_VSS_WRITER	smswriter.log	2 MB
SMS_SOFTWARE_INVENTORY_PROCESSOR	sinvproc.log	2 MB
SMS_SOFTWARE_METERING_PROCESSOR	swmproc.log	2 MB
SMS_SRS_REPORTING_POINT	srsp.log	2 MB
SMS_STATE_SYSTEM	statesys.log	2 MB
SMS_STATUS_MANAGER	statmgr.log	2 MB
SMS_WINNT_SERVER_DISCOVERY_AGENT	ntsvrdis.log	2 MB
SMS_WSUS_CONFIGURATION_MANAGER	WCM.log	2 MB
SMS_WSUS_CONTROL_MANAGER	WSUSCtrl.log	2 MB
SMS_WSUS_SYNC_MANAGER	wsyncmgr.log	2 MB
